Galvalume Steel Sheet Description
Galvanized zinc coil is based on cold-rolled steel plate, which is solidified by 55% aluminum, 43.4 zinc and 1.6 silicon at 600 ℃. It combines the physical protection and high durability of aluminum with the electrochemical protection of zinc. Also known as aluminized zinc steel coil.
The production process of aluminum zinc plating is as follows:
Uncoiling-cleaning-annealing-zinc pot-cooling-air knife-straightening-post-treatment-coiling
Heat Reflection
People use it as a thermal insulation material, and its thermal reflectivity is up to twice that of galvanized steel.
Heat Resistance
Galvanized steel coil has good heat resistance and can withstand high temperatures above 300°C, which is very similar to the oxidation resistance of aluminized steel at high temperatures. Commonly used in chimney tubes, ovens, illuminators, fluorescent lampshades, etc.
Corrosion Resistance
The key to the corrosion resistance of aluminized zinc steel coil is the protective performance of aluminum. Once the zinc is worn, the aluminum forms a dense layer of aluminum oxide, preventing further internal corrosion.
Economy
The density of 55% AL-Zn is smaller than that of Zn. Therefore, when the coating weight and thickness are the same, the area of the aluminum-zinc plated steel sheet is 3% larger than that of the galvanized steel sheet.
Easy to Paint
The coating material on the aluminized zinc steel plate has excellent adhesion, and can be directly coated with tar on advertising boards and common plates without pretreatment such as weathering.
Scope of Application
Construction industry: such as roof, internal and external wall panels, sound insulation walls, pipes, garages, etc.
Automotive industry: such as mufflers, exhaust pipes, wiper accessories, fuel tanks, truck containers, etc.
Household appliances: such as refrigerator backplane, air conditioner, microwave oven, LED backlight, electric cabinet, etc
Agricultural use: such as greenhouse, granary, pig farm, chicken coop, etc
Other industries: such as heat exchangers, dryers, etc.
Product Parameters
| Product Name | Galvalume Steel Sheet |
| Thickness | 0.12mm-6.00mm |
| Width | 600mm-1500mm |
| Length | 1m-12m, Support Customization |
| Standard | AISI, ASTM, DIN, JIS, GB, JIS, SUS, EN, etc. |
| Thickness of Aluminum Zinc Coating | 30-185g/m² |
| Content of Al-Zn Coating | Al: 55%, Zn: 43.5%, Si: 1.5% |
Chemical Composition
Al | Zn | Si | Fe | Cu | Cd | Pb | Sn | Ni | Close Cr |
55-58 | 41-43 | 1.5-2 | 0.25 | 0.03 | 0.05 | 0.01 | 0.05 | 0.05 | 0.05 |
Mechanical Properties
Grade | Yield Strength MPa≥ | Tensile Strength MPa≥ | Elongation A%≥ |
DX51D Z/ZM/AZ/AM | 240-380 | 270-500 | 22 |
DX52D Z/ZM/AZ/AM | 140-300 | 270-420 | 26 |
DX53D Z/ZM/AZ/AM | 140-260 | 270-380 | 30 |
DX54D Z/ZM/AZ/AM | 120-220 | 260-350 | 36 |
S220GD Z/ZM/AM | 220 | 300 | 20 |
S250GD Z/ZM/AZ/AM | 250 | 330 | 19 |
S280GD Z/ZM/AM | 280 | 360 | 18 |
S300GD A/AM | 300 | 380 | 18 |
S320GD Z/ZM/AM | 320 | 390 | 17 |
S350GD Z/ZM/AZ/AM | 350 | 420 | 16 |
S450GD A/AM | 450 | 480 | 15 |
S550GD Z/ZM/AZ/AM | 550 | 550 | - |
Galvanized Surface Selection

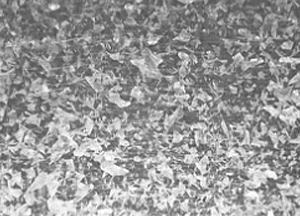

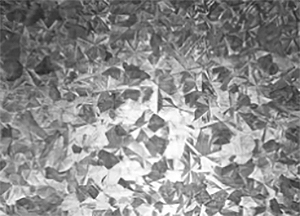

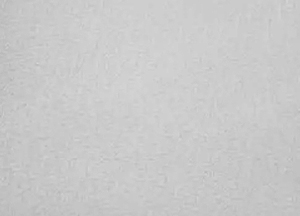

Zero Spangle | Minimized Spangle | Normal Spangle | Large Spangle |
|
|
|
|
Type of Coating | Recommended Coating Weight |
Aluminum-zinc Alloy | 30/40/50/60/75/90/100/150 |
A: Coating quality50g/㎡,approximately equal to the coating thickness13.3pm | |
Project | Classification | Symbol |
Type of Coating | Aluminum-zinc Alloy | AZ |
Surface Finish | Conventional Sequins | R |
Minimize Sequins | M | |
Skin Through | S | |
Surface Treatment | Chromate Passivation | c |
Non-chromate Passivation | C5 | |
Chromate Passivationoiling | CO | |
Chromium-free Passivationoiling | CO5 | |
Anti-fingerprint | N | |
Chromate-free/Anti-fingerprint | N5 | |
No chromate high weather resistance fingerprint | NW | |
Oil filling | 0 | |
No treatment | U |
Material Comparison
Chinese Standard | European Standards | American Standard | Japanese Standard |
DC51D+AZ | DX51D+AZ | CS Type B, Type C | SGLCC |
DC52D+AZ | DX52D+AZ | DS | SGLCD |
S250GD+AZ | S250GD+AZ | 255 | - |
S300GD+AZ | - | - | - |
S350GD+AZ | S350GD+AZ | 345 | Class1 SGLC490 |
S550GD+AZ | S550GD+AZ | 550 | SGLC570 |
Packing and delivery
The company always adheres to the principle of quality first and service first, providing customers with high-quality steel. The company has sufficient resources and faces customers with prices that are better than the market. It develops and progresses together with customers and builds a mutually beneficial cooperation platform.
CUSTOMER VISIT
We have a reliable reputation among our customers thanks to professional services, quality products and competitive prices. We always welcome customers from home and abroad for cooperation. With us for overall success.
CUSTOMER FEEDBACK
FACTORY WORKSHOP
We supplied carbon steel, stainless steel, galvanized steel, aluminum, copper alloys and so on. Our experienced employee, engaged in strict quality control and careful customer service, is ready to discuss your requirements and ensure the full satisfaction of customers.
Factory workshop
Factory workshop
Factory workshop
Factory workshop
Factory workshop
Factory workshop
Factory workshop
Factory workshop
Factory workshop
Factory workshop
Factory workshop
Factory workshop
PARTNER
APPLICATION AREAS

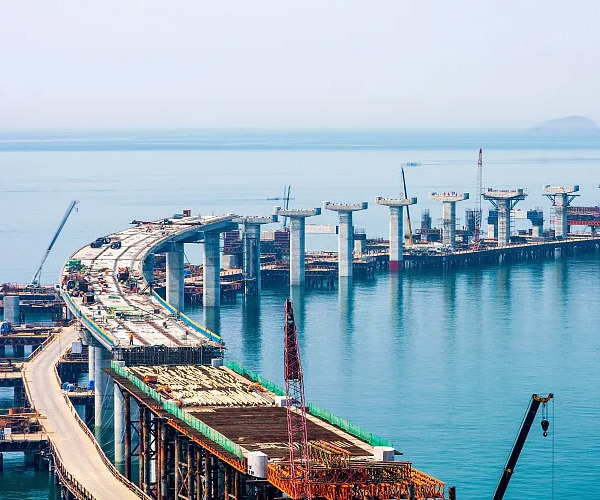

Bridge

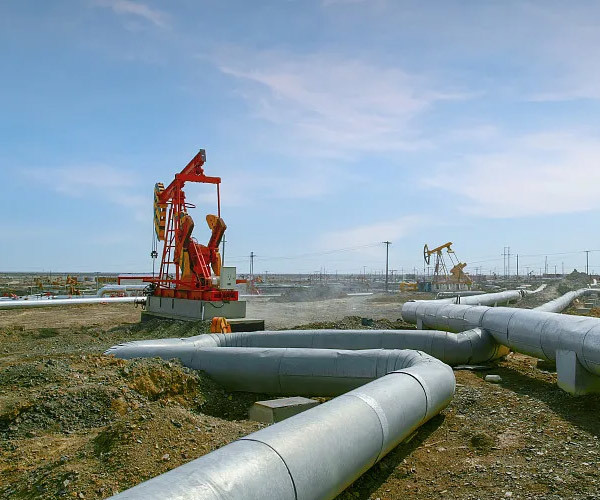

Oil pipeline

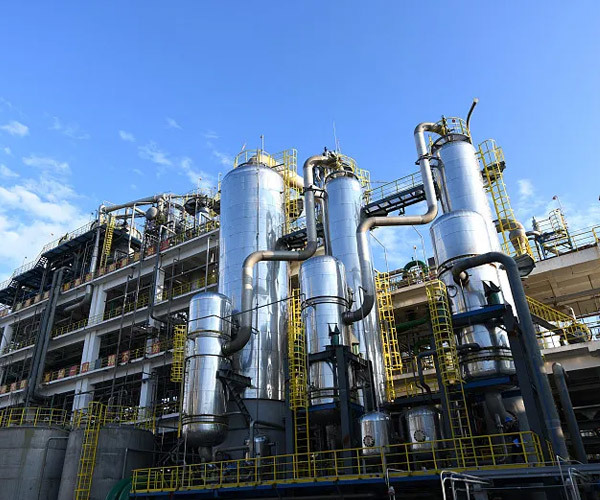

Chemical industry

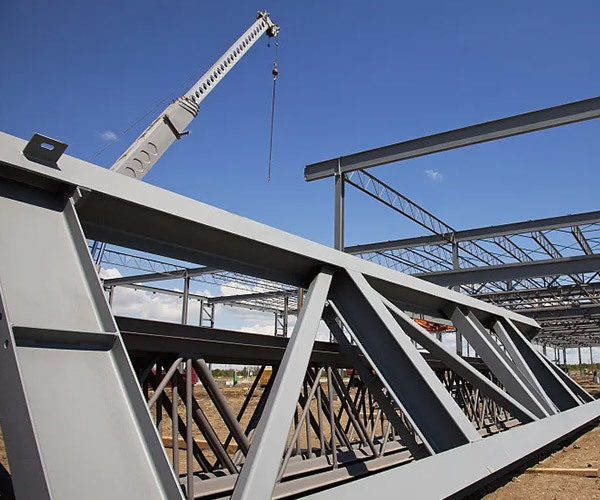

Steel structure
